# 3COM
ETHERLINK III 3C509B-TP
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM Available (location unidentified)
IMG IMG 1
+------------------------------------------------------------+

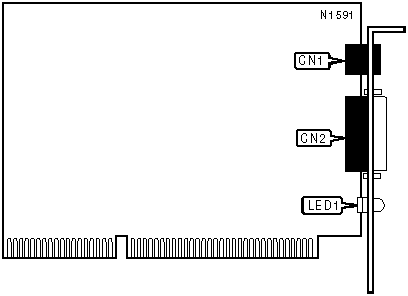

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Unshielded twisted | CN1 | AUI transceiver via | CN2 |
| pair port | | DB-15 port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|-----------+-------------+----------------------------------|
| LED1 | On | Network connection is good |
|-----------+-------------+----------------------------------|
| LED1 | Blinking | Cable Polarity is reversed |
|-----------+-------------+----------------------------------|
| LED1 | Off | Network connection is broken |
|------------------------------------------------------------|
| Note: When you first install the adapter and power up |
| the computer, the LED lights, but the network |
| connection is not active. For the network connection |
| to be good you need to run the Group 3 test or have |
| loaded the network drivers. |
+------------------------------------------------------------+
