# 3COM CORPORATION
FAST ETHERLINK 3C597-TX
NIC Type Ethernet
Network Transfer Rate 10/100Mbps
Data Bus 32-bit EISA
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available (location unidentified)

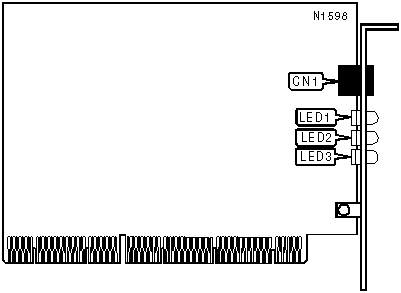

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+--------+----------+--------------------------------|
| LED1 | Green | On | 10Base-T network connection is |
| | | | good |
|-------+--------+----------+--------------------------------|
| LED1 | Green | Blinking | Polarity is reversed |
|-------+--------+----------+--------------------------------|
| LED1 | Green | Off | 10Base-T network connection is |
| | | | broken |
|-------+--------+----------+--------------------------------|
| LED2 | Green | On | 100Base-TX network connection |
| | | | is good |
|-------+--------+----------+--------------------------------|
| LED2 | Green | Off | 100Base-TX network connection |
| | | | is broken |
|-------+--------+----------+--------------------------------|
| LED3 | Yellow | On | Data is being |
| | | | transmitted/received |
|-------+--------+----------+--------------------------------|
| LED3 | Yellow | Off | Data is not being |
| | | | transmitted/received |
|------------------------------------------------------------|
| Note: The exact locations of LED1, LED2, and LED3 are |
| unidentified. |
+------------------------------------------------------------+
