       # 3COM CORPORATION

          ETHERLINK/NB (3C543)

          NIC Type               Ethernet
          Maximum Onboard Memory 64KB DRAM
          Network Transfer Rate  10Mbps
          Data Bus               NuBus
          Topology               Linear Bus
          Wire Type              DIX transceiver via DB-15 port

                                 RG-58A/U 50ohm coaxial
          Boot ROM               Not available

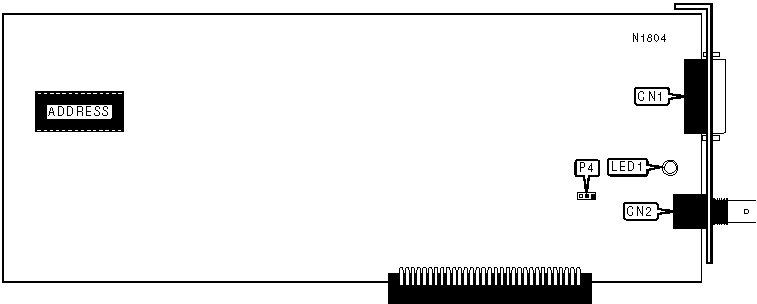

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function       | Label |       Function       | Label |
          |---------------------+-------+----------------------+-------|
          | DIX transceiver via |  CN1  | RG-58A/U 50ohm       |  CN2  |
          | DB-15 port          |       | coaxial connector    |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         CABLE TYPE                         |
          |------------------------------------------------------------|
          |            Setting             |            P4             |
          |--------------------------------+---------------------------|
          |     RG-58A/U 50ohm coaxial     |     Pins 2 & 3 closed     |
          |--------------------------------+---------------------------|
          | DIX transceiver via DB-15 port |     Pins 1 & 2 closed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |      The LED indicates which cable type is selected. Its   |
          |      exact indications are unidentified.                   |
          +------------------------------------------------------------+
