# 3COM CORPORATION
TOKENLINK III 16/4 (3C619B)
NIC Type Token Ring
Boot ROM Available (location unidentified)
Network Transfer Rate 4Mbps/16Mbps
Topology Ring
Wire Type Shielded/Unshielded twisted pair
Data Bus 16-bit ISA

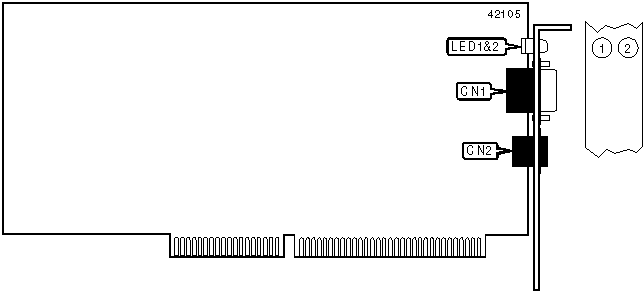

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| STP via DB-9 | CN1 | UTP via RJ-45 | CN2 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Network connection is good at |
| | | | 4Mbps |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Card is not connected to network |
| | | | at 4Mbps |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | On | Network connection is good at |
| | | | 16Mbps |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | Off | Card is not connected to network |
| | | | at 16Mbps |
+------------------------------------------------------------+
