# 3COM CORPORATION
ETHERLINK III (3C509-TP)
NIC Type Ethernet
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wire Type Unshielded twisted pair
AUI transceiver via DB-15 port
Data Bus 16-bit ISA

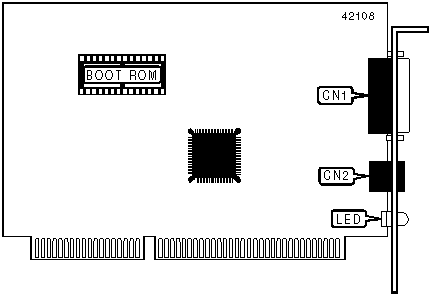

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------------+-------+---------------+-------|
| AUI transceiver via DB-15 | CN1 | UTP via RJ-45 | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|---------+--------+-----------+-----------------------------|
| LED1 | Green | On | The link beat is working. |
|---------+--------+-----------+-----------------------------|
| LED1 | Green | Off | The link beat has not been |
| | | | established or there is a |
| | | | connection problem. |
|---------+--------+-----------+-----------------------------|
| LED1 | Green | Blinking | Polarity is reversed. |
|------------------------------------------------------------|
| Note: For the link beat to be active the Group 3 test must |
| have been run or the network drivers loaded. |
+------------------------------------------------------------+
