# 3COM CORPORATION
ETHERLINK III (3C579)
NIC Type Ethernet
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Linear Bus
Wire Type RG-58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Data Bus 32-bit EISA
IMG IMG 1
+------------------------------------------------------------+

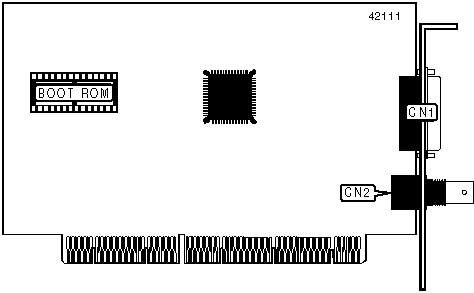

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| AUI transceiver via DB-15 | CN1 | RG-58A/U 50ohm | CN2 |
| port | | connector | |
+------------------------------------------------------------+
