# 3COM CORPORATION
ATMLINK (3C971-F)
NIC Type ATM (OC-3c)
Boot ROM Not available
Network Transfer Rate 155Mbps
Topology Star
Wire Type Fiber optic cable
Data Bus 32-bit PCI
Card Size Full height, half length

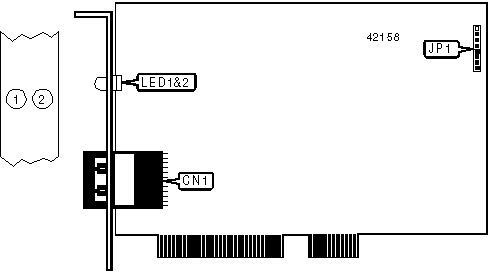

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|--------------------------------+---------------------------|
| Fiber optic SC cable connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------------+-------+--------------|
| ยป | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | On | Card is transmitting or receiving |
| | | | data |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | Off | Card is not transmitting or |
| | | | receiving data |
|------+--------+--------+-----------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+--------+-----------------------------------|
| LED2 | Green | Off | Network connection is broken |
+------------------------------------------------------------+
