# 3COM CORPORATION
TOKENLINK VELOCITY XL (3C359)
Card Type Network Interface card
NIC Type Token Ring
Boot ROM Available
Network Transfer Rate 4/16Mbps
Topology Ring
Wire Type Unshielded twisted pair
Shielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

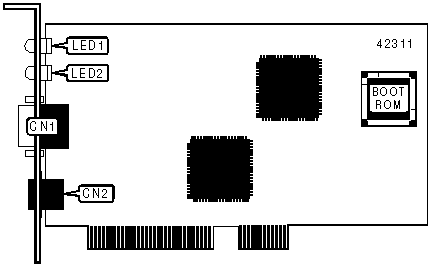

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 9-pin serial port | CN1 | RJ-45 UTP connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Card operating at 4Mbps network |
| | | | speed |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Card not operating at 4Mbps |
| | | | network speed |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | On | Card operating at 16Mbps network |
| | | | speed |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | Off | Card not operating at 16Mbps |
| | | | network speed |
+------------------------------------------------------------+
