# ASUS COMPUTER INTERNATIONAL
EISA-L500
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 32-bit EISA
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Boot ROM Available

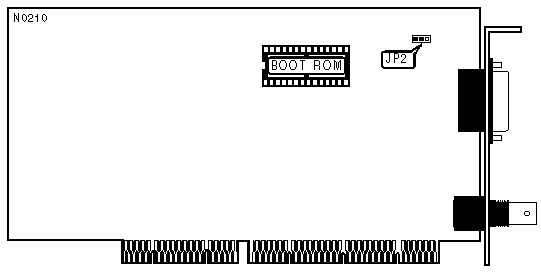

IMG IMG 1
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | JP2 |
|------------------------------------+-----------------------|
| ยป | RG-58A/U 50ohm coaxial | Pins 1 & 2 Closed |
|------+-----------------------------+-----------------------|
| | Software select | Pins 2 & 3 Closed |
|------------------------------------------------------------|
| Note:The software setup option requires software provided |
| by the manufacturer. |
+------------------------------------------------------------+
