       # ASANTE TECHNOLOGIES, INC.

          MACCON3 NUBUS

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         32-Bit NuBus (Apple)
          Topology         Star

                           Linear Bus
          Wiring Type      RG-58A/U 50ohm coaxial

                           AUI transceiver via DB-15 port

                           Unshielded twisted pair
          Boot ROM         Not Available

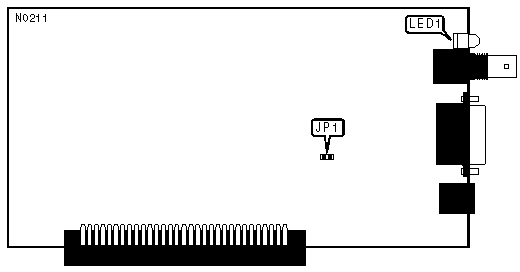

   IMG IMG 1


          +------------------------------------------------------------+
          |                         CABLE TYPE                         |
          |------------------------------------------------------------|
          |                    Type                    |      JP1      |
          |--------------------------------------------+---------------|
          | ยป       |       Automatic selection        |     Open      |
          |---------+----------------------------------+---------------|
          |         | Force AUI transceiver via DB-15  |    Closed     |
          |         |               port               |               |
          |------------------------------------------------------------|
          | Note:When automatic mode is selected, the card will sense  |
          | which connector is being used and configure itself.        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color | Status |             Condition              |
          |------+-------+--------+------------------------------------|
          | LED1 | Green |   On   |    Data is being transmitted or    |
          |      |       |        |             receiving              |
          |------+-------+--------+------------------------------------|
          | LED1 | Green |  Off   |  Data is not being transmitted or  |
          |      |       |        |             receiving              |
          +------------------------------------------------------------+
