# ASANTE TECHNOLOGIES, INC.
FRIENDLYNET II
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 32-Bit NuBus (Apple)
Topology Linear Bus
Wiring Type AAUI (Apple Attachment-Unit Interface)
Boot ROM Not Available

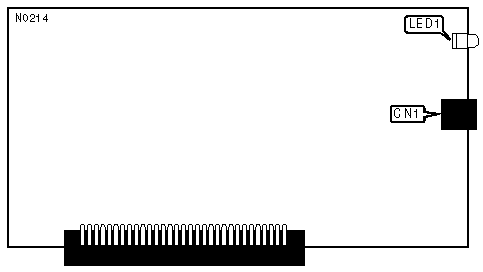

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Location | Connector |
|-------------------+----------------------------------------|
| CN1 | AAUI (Apple Attachment-Unit Interface) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Green | On | Data is being transmitted or |
| | | | receiving |
|------+-------+--------+------------------------------------|
| LED1 | Green | Off | Data is not being transmitted or |
| | | | receiving |
+------------------------------------------------------------+
