# AST RESEARCH, INC.
AST ETHERNODE (202246-001)
Transfer Rate 10Mbps
Data Bus 8-bit ISA
Topology Linear bus
Wiring Type RG-58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Boot ROM Not available

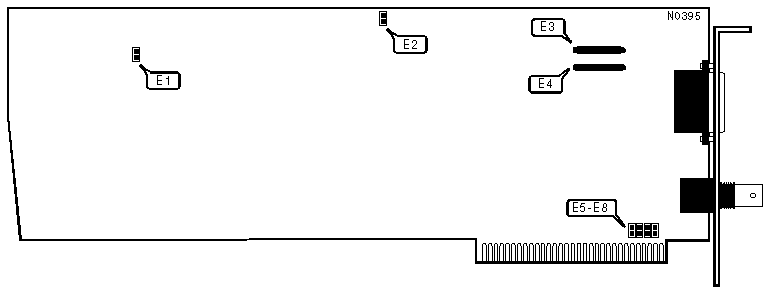

IMG IMG 1
+------------------------------------------------------------+
| SLEEP MODE |
|------------------------------------------------------------|
| Setting | E2 |
|---------------------------------------+--------------------|
| » | Disabled | Closed |
|----------------+----------------------+--------------------|
| | Enabled | Open |
|------------------------------------------------------------|
| Note: When sleep mode is enabled the card is disabled. The |
| card cannot be accessed by the computer or the network. |
| This option is provided to simplify trouble shooting |
| system conflicts. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | E3 | E4 |
|--------------------------------+-------------+-------------|
| » | RG-58A/U 50ohm | Open | Closed |
| | coaxial | | |
|---------+----------------------+-------------+-------------|
| | AUI transceiver via | Closed | Open |
| | DB-15 port | | |
|------------------------------------------------------------|
| Note:E3 and E4 are not jumpers, they are receptacles for |
| a terminating resistor. In this case open means that the |
| resistor is not installed while closed would mean that |
| the resistor is installed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CARD ID |
|------------------------------------------------------------|
| Setting | E5 | E6 | E7 | E8 |
|--------------+------------+----------+----------+----------|
| » | A | Closed | Open | Open | Open |
|--------+-----+------------+----------+----------+----------|
| | B | Open | Closed | Open | Open |
|--------+-----+------------+----------+----------+----------|
| | C | Open | Open | Closed | Open |
|--------+-----+------------+----------+----------+----------|
| | D | Open | Open | Open | Closed |
|------------------------------------------------------------|
| Note: Up to four cards can be installed at once into the |
| same system. If more than one card is installed in the |
| system, each must have a distinct ID. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|------------------------------+-----------------------------|
| E1 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS NOTES |
|------------------------------------------------------------|
| To completely configure this card, the software that comes |
| with it must be used.. |
+------------------------------------------------------------+
