AICETHER-8
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 8-bit ISA
Topology Linear bus
Wiring Type RG-58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Boot ROM Available

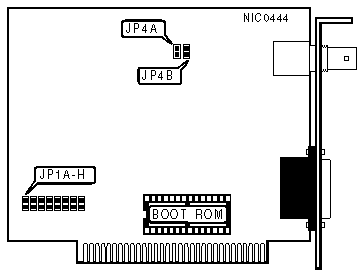

IMG IMG 1
+------------------------------------------------------------+
| BOOT ROM |
|------------------------------------------------------------|
| Setting | JP1A |
|-----------------------------------------+------------------|
| » | Disabled | Open |
|-------------+---------------------------+------------------|
| | Enabled | Closed |
|------------------------------------------------------------|
| Note:Location of the boot ROM may vary on different |
| revisions of this card. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOOT ROM ADDRESS |
|------------------------------------------------------------|
| Address | JP1B | JP1C |
|--------------------+-------------------+-------------------|
| C8000h | Closed | Closed |
|--------------------+-------------------+-------------------|
| CC000h | Closed | Open |
|--------------------+-------------------+-------------------|
| D0000h | Open | Closed |
|--------------------+-------------------+-------------------|
| D4000h | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O BASE ADDRESS |
|------------------------------------------------------------|
| Address | JP1D | JP1E |
|---------------------+-------------------+------------------|
| | 200h | Closed | Closed |
|---+-----------------+-------------------+------------------|
| | 210h | Closed | Open |
|---+-----------------+-------------------+------------------|
| » | 300h | Open | Closed |
|---+-----------------+-------------------+------------------|
| | 310h | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT REQUEST |
|------------------------------------------------------------|
| IRQ | JP1F | JP1G | JP1H |
|--------------+---------------+--------------+--------------|
| | 2 | Closed | Open | Open |
|---+----------+---------------+--------------+--------------|
| » | 3 | Open | Closed | Open |
|---+----------+---------------+--------------+--------------|
| | 5 | Open | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | JP4A | JP4B |
|--------------------------------+-------------+-------------|
| RG-58A/U 50ohm coaxial | Closed | Closed |
|--------------------------------+-------------+-------------|
| AUI transceiver via DB-15 port | Open | Open |
+------------------------------------------------------------+
