# ALLIED TELESYN, INC.
AT-1500BT
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Star
Wiring Type RG58A/U 50ohm
Unshielded twisted pair
Boot ROM In firmware

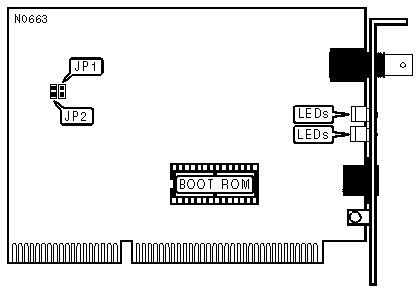

IMG IMG 1
+------------------------------------------------------------+
| BASE I/O ADDRESS |
|------------------------------------------------------------|
| Address | JP1 | JP2 |
|---------------------+-------------------+------------------|
| ยป | 300h | Closed | Closed |
|---+-----------------+-------------------+------------------|
| | 320h | Closed | Closed |
|---+-----------------+-------------------+------------------|
| | 340h | Open | Open |
|---+-----------------+-------------------+------------------|
| | 360h | Open | Open |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Data is not being transmitted |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Data is being transmitted |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | Off | Data is not being received |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | On | Data is being received |
|------+--------+--------+-----------------------------------|
| LED3 | Green | On | 10BaseT link integrity exists |
|------+--------+--------+-----------------------------------|
| LED3 | Green | Off | 10BaseT link integrity broken |
|------+--------+--------+-----------------------------------|
| LED4 | Yellow | On | Collisions detected on network |
|------+--------+--------+-----------------------------------|
| LED4 | Yellow | Off | No collisions detected on network |
+------------------------------------------------------------+
