       # ASANTE TECHNOLOGIES, INC.

          MACRING NB

          NIC Type:           Token-Ring
          Transfer Rate:      4/16Mbps
          Data Bus:           32-Bit NuBus (Apple)
          Topology:           Ring
          Wiring Type         Shielded twisted pair
          Boot ROM            Not available

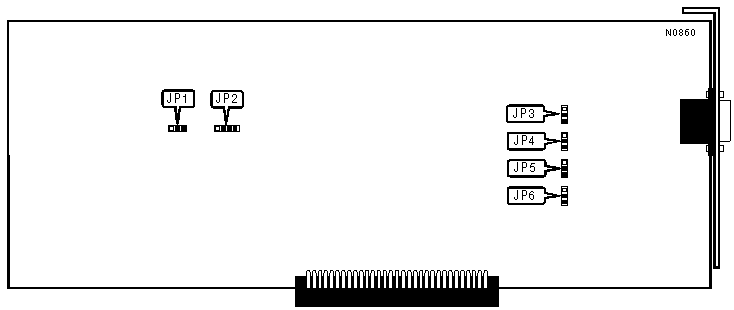

   IMG IMG 1


          +------------------------------------------------------------+
          |                     DATA TRANSFER RATE                     |
          |------------------------------------------------------------|
          |       Speed        |        JP1        |        JP2        |
          |--------------------+-------------------+-------------------|
          |       4Mbps        | Pins 2 & 3 closed | Pins 3 & 4 closed |
          |--------------------+-------------------+-------------------|
          |       16Mbps       | Pins 1 & 2 closed | Pins 2 & 3 closed |
          |--------------------+-------------------+-------------------|
          | Select via MacRing | Pins 1 & 2 closed | Pins 1 & 2 closed |
          |    Mgr program     |                   |                   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                FACTORY CONFIGURED SETTINGS                 |
          |------------------------------------------------------------|
          |           Jumper           |            Setting            |
          |----------------------------+-------------------------------|
          |            JP3             |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |            JP4             |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |            JP5             |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |            JP6             |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+
