# BOCA RESEARCH, INC.
BOCALANCARD (BEN120)
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Available

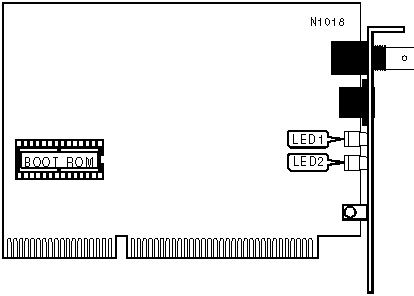

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|---------+---------+----------+-----------------------------|
| LED1 | Green | On | Network connection is good |
|---------+---------+----------+-----------------------------|
| LED1 | Green | Off | Network connection is |
| | | | broken |
|---------+---------+----------+-----------------------------|
| LED2 | Red | On | Normal polarity |
|---------+---------+----------+-----------------------------|
| LED2 | Red | Off | Reversed polarity |
|------------------------------------------------------------|
| Note: LED2 is programmable to show transmit, receive, |
| polarity, jabber and collision. Polarity is default |
+------------------------------------------------------------+
