# ASANTE TECHNOLOGIES, INC.
MACCON+SE30
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus PDS
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI Transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Not available

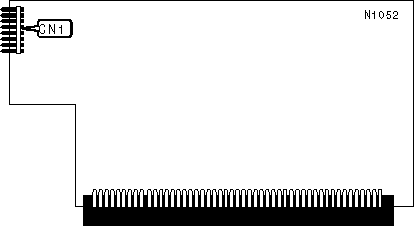

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Function |
|-------------------------------+----------------------------|
| Connector board | CN1 |
+------------------------------------------------------------+

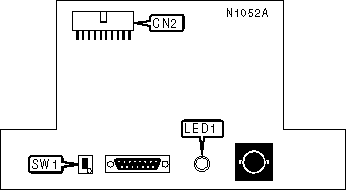

IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Function |
|-------------------------------+----------------------------|
| Controller board connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Cable Type | SW1 |
|--------------------------------+---------------------------|
| RG-58A/U 50ohm coaxial | Off |
|--------------------------------+---------------------------|
| AUI Transceiver via DB-15 port | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+---------+---------+-------------------------------|
| LED1 | Red | On | Network activity detected |
|--------+---------+---------+-------------------------------|
| LED1 | Red | Off | Network activity not detected |
+------------------------------------------------------------+

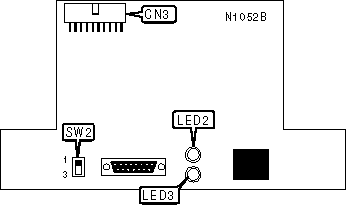

IMG IMG 3
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| Controller board connector | CN3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Cable Type | SW2 |
|-----------------------------------------------+------------|
| Unshielded twisted pair, link integrity | position 1 |
| enabled | |
|-----------------------------------------------+------------|
| Unshielded twisted pair, link integrity | position 2 |
| disabled | |
|-----------------------------------------------+------------|
| AUI Transceiver via DB-15 port | position 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+---------+---------+-------------------------------|
| LED2 | Red | On | Network activity detected |
|--------+---------+---------+-------------------------------|
| LED2 | Red | Off | Network activity not detected |
|--------+---------+---------+-------------------------------|
| LED3 | Green | On | Link status OK |
|--------+---------+---------+-------------------------------|
| LED3 | Green | Off | Link status broken |
+------------------------------------------------------------+
