       # ASANTE TECHNOLOGIES, INC.

          MACCON+ LC

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         PDS
          Topology         Linear Bus/Star
          Wiring Type      Unshielded twisted pair

                           RG-58A/U 50ohm coaxial
          Boot ROM         Not available

   IMG IMG 1


   IMG IMG 2


          +------------------------------------------------------------+

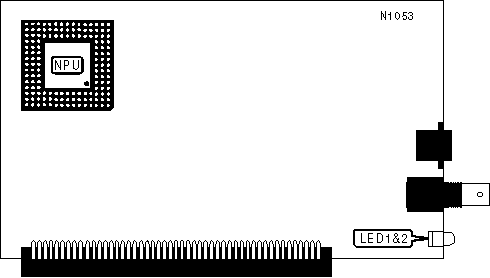

          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   |  Color  | Status  |           Condition           |
          |--------+---------+---------+-------------------------------|
          |  LED1  |   Red   |   On    |   Network activity detected   |
          |--------+---------+---------+-------------------------------|
          |  LED1  |   Red   |   Off   | Network activity not detected |
          |--------+---------+---------+-------------------------------|
          |  LED2  |  Green  |   On    |        Link status OK         |
          |--------+---------+---------+-------------------------------|
          |  LED2  |  Green  |   Off   |      Link status not OK       |
          +------------------------------------------------------------+
