       # ADDTRON TECHNOLOGY CO., LTD.

          EP-310

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         Parallel
          Topology         Linear Bus/Star
          Wiring Type      Unshielded twisted pair

                           RG-58A/U 50ohm coaxial
          Boot ROM         Not available

   IMG IMG 1


          +------------------------------------------------------------+

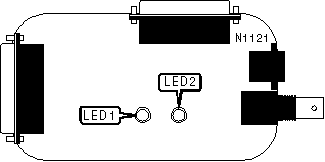

          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |    LED    |   Status    |            Condition             |
          |-----------+-------------+----------------------------------|
          |   LED1    |     On      |             Power on             |
          |-----------+-------------+----------------------------------|
          |   LED1    |     Off     |            Power off             |
          |-----------+-------------+----------------------------------|
          |   LED2    |     On      |   Network activity is detected   |
          |-----------+-------------+----------------------------------|
          |   LED2    |     Off     | Network activity is not detected |
          +------------------------------------------------------------+
