       # ARK PC TECHNOLOGY

          AR-PCMCIA

          NIC Type              Ethernet
          Network Transfer Rate 10Mbps
          Data Bus              PCMCIA Type II
          Topology              Linear Bus, Star
          Wiring Type           Unshielded twisted pair

                                RG-58A/U 50ohm coaxial
          Boot ROM              Not available

   IMG IMG 1


          +------------------------------------------------------------+

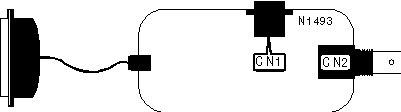

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |         Function          | Label |    Function    | Label |
          |---------------------------+-------+----------------+-------|
          | Unshielded twisted pair   |  CN1  | RG-58A/U 50ohm |  CN2  |
          | port                      |       | coaxial port   |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   |  Color  |  Status  |          Condition           |
          |--------+---------+----------+------------------------------|
          |  LED1  |  Green  |    On    |         Power is on          |
          |--------+---------+----------+------------------------------|
          |  LED1  |  Green  | Blinking |  Data is being transmitted   |
          |--------+---------+----------+------------------------------|
          |  LED1  |  Green  |   Off    |         Power is off         |
          |--------+---------+----------+------------------------------|
          |  LED2  |  Green  | Blinking |    Data is being received    |
          |--------+---------+----------+------------------------------|
          |  LED2  |  Green  |   Off    |  Data is not being received  |
          |------------------------------------------------------------|
          | Note: The exact locations of LED1 and LED2 are             |
          | unidentified.                                              |
          +------------------------------------------------------------+
