# ADDTRON TECHNOLOGY COMPANY, LTD.
AE-16C
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available

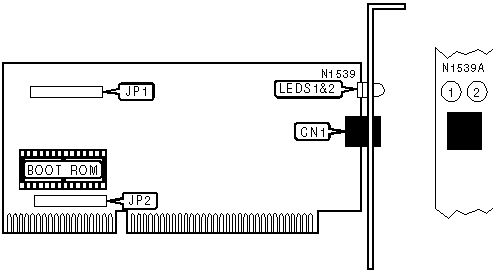

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Unshielded twisted pair | CN1 | RG-58A/U 50ohm | CN2 |
| port | | coaxial port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|-------+---------+------------------------------------------|
| LED1 | On | Network connection is good |
|-------+---------+------------------------------------------|
| LED1 | Off | Network connection is broken |
|-------+---------+------------------------------------------|
| LED2 | On | Data is being transmitted/received |
|-------+---------+------------------------------------------|
| LED2 | Off | Data is not being transmitted/received |
|------------------------------------------------------------|
| Note: The exact locations of LED1 and LED2 are |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Note: The purpose of JP1 and JP2 are unidentified. |
+------------------------------------------------------------+
