# ALFA NETCOM, INC.
ALFA A4020 PCI 100VG-ANYLAN
NIC Type Ethernet
Network Transfer Rate 10/100Mbps
Data Bus 32-bit PCI
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Unavailable

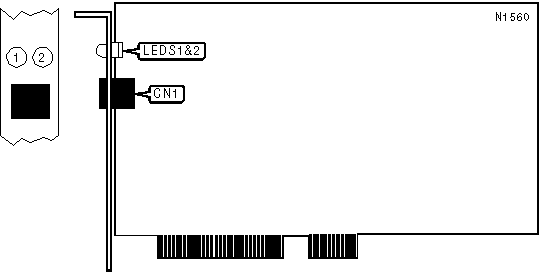

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|---------------------------------------------+--------------|
| Unshielded twisted pair port (100VG-AnyLAN) | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+----------+----------------------------------------|
| LED1 | On | Data is being transmitted/received |
|--------+----------+----------------------------------------|
| LED1 | Off | Data is not being transmitted/received |
|--------+----------+----------------------------------------|
| LED2 | On | Network connection is good |
|--------+----------+----------------------------------------|
| LED2 | Off | Network connection is broken |
+------------------------------------------------------------+
