# ALFA NETCOM, INC.
ALFA A4021 PCI 10BASE-T & 100VG-ANYLAN
NIC Type Ethernet
Network Transfer Rate 10/100Mbps
Data Bus 32-bit PCI
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Unavailable

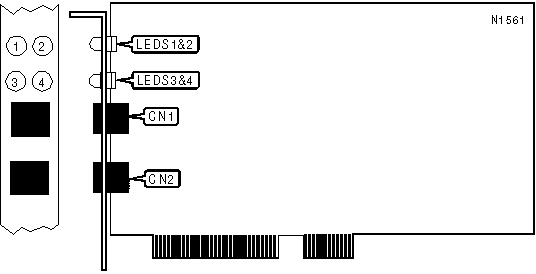

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Unshielded twisted | CN1 | Unshielded | CN2 |
| pair port | | twisted pair port | |
| | | | |
| (100VG-AnyLAN) | | (10Base-T) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+----------+----------------------------------------|
| LED1 | On | 10Base-T selected |
|--------+----------+----------------------------------------|
| LED1 | Off | 10Base-T not selected |
|--------+----------+----------------------------------------|
| LED2 | On | 100VG-AnyLAN selected |
|--------+----------+----------------------------------------|
| LED2 | Off | 100VG-AnyLAN not selected |
|--------+----------+----------------------------------------|
| LED3 | On | Data is being transmitted/received |
|--------+----------+----------------------------------------|
| LED3 | Off | Data is not being transmitted/received |
|--------+----------+----------------------------------------|
| LED4 | On | Network connection is good |
|--------+----------+----------------------------------------|
| LED4 | Off | Network connection is broken |
+------------------------------------------------------------+
