# ASANTE TECHNOLOGIES, INC.
10BASE2 MINI MAU FOR MACINTOSH
Card Type Ethernet Transceiver
Maximum Network Rate 10Mbps
Data Bus AAUI
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial

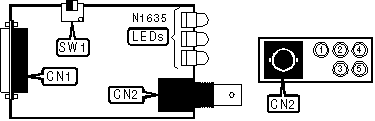

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Macintosh AAUI | CN1 | RG-58A/U 50ohm | CN2 |
| connector | | coaxial | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| » | Transceiver is not internally | SW1/1 | On |
| | terminated | | |
|---+-------------------------------------+-------+----------|
| | Transceiver is internally | SW1/1 | Off |
| | terminated | | |
|---+-------------------------------------+-------+----------|
| » | Heartbeat function disabled | SW1/2 | On |
|---+-------------------------------------+-------+----------|
| | Heartbeat function enabled | SW1/2 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Transceiver is receiving power |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Transceiver is not receiving |
| | | | power |
|------+--------+--------+-----------------------------------|
| LED2 | Green | On | Transceiver is receiving from |
| | | | network |
|------+--------+--------+-----------------------------------|
| LED2 | Green | Off | Transceiver is not receiving from |
| | | | network |
|------+--------+--------+-----------------------------------|
| LED3 | Green | On | Transceiver is transmitting to |
| | | | network |
|------+--------+--------+-----------------------------------|
| LED3 | Green | Off | Transceiver is not transmitting |
| | | | to network |
|------+--------+--------+-----------------------------------|
| LED4 | Yellow | On | Network jabber detected |
|------+--------+--------+-----------------------------------|
| LED4 | Yellow | Off | Network jabber not detected |
|------+--------+--------+-----------------------------------|
| LED5 | Yellow | On | Network collision detected |
|------+--------+--------+-----------------------------------|
| LED5 | Yellow | Off | Network collision not detected |
+------------------------------------------------------------+
