# ASANTE TECHNOLOGY, INC.
ASANTENIC-PCI
Card Type Ethernet
Data Bus 32-bit PCI
Maximum Network Rate 10Mbps
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

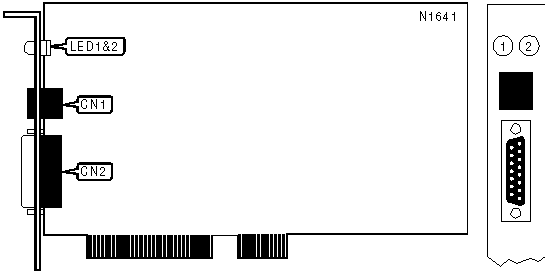

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Unshielded twisted | CN1 | AUI transceiver via | CN2 |
| pair | | DB-15 port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+---------+---------+-------------------------------|
| LED1 | Green | On | Network connection is good |
|--------+---------+---------+-------------------------------|
| LED1 | Green | Off | Network connection is broken |
|--------+---------+---------+-------------------------------|
| LED2 | Amber | On | Card is transmitting |
|--------+---------+---------+-------------------------------|
| LED2 | Amber | Off | Card is not transmitting |
+------------------------------------------------------------+
