# ASANTE TECHNOLOGY, INC.
ETHERPAC 2000+T
Card Type Ethernet
Data Bus 8/16-bit ISA
Maximum Network Rate 10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available

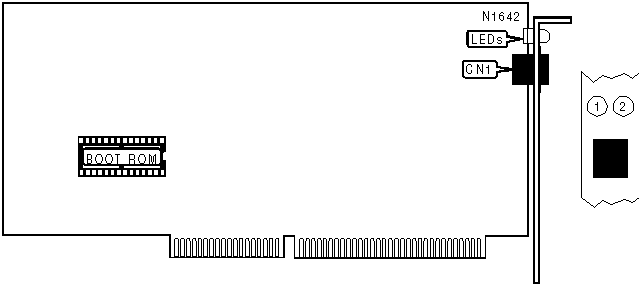

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Red | On | Card is transmitting or receiving |
|------+-------+--------+------------------------------------|
| LED1 | Red | Off | Card is not transmitting or |
| | | | receiving |
|------+-------+--------+------------------------------------|
| LED2 | Green | On | Network connection is good |
|------+-------+--------+------------------------------------|
| LED2 | Green | Off | Network connection is broken |
+------------------------------------------------------------+
