# ACCULAN CORPORATION
EN-2420PB
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
Boot ROM Available

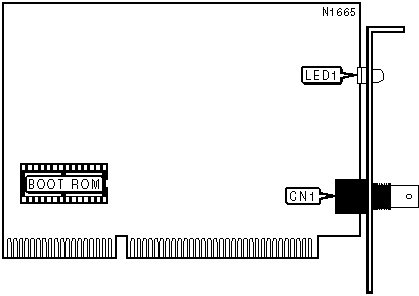

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RG-58A/U 50ohm coaxial port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|-------+-----------+----------------------------------------|
| LED1 | Blinking | Data is being transmitted/received |
|-------+-----------+----------------------------------------|
| LED1 | Off | Data is not being transmitted/received |
+------------------------------------------------------------+
