       # ACCULAN CORPORATION

          EN-6200P2 PCMCIA

          NIC Type              Ethernet
          Network Transfer Rate 10Mbps
          Data Bus              PCMCIA Type II
          Topology              Linear Bus, Star
          Wiring Type           Unshielded twisted pair

                                RG-58A/U 50ohm coaxial
          Boot ROM              Not available

   IMG IMG 1


          +------------------------------------------------------------+

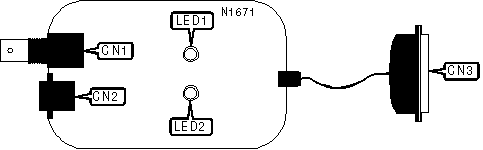

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function           | Label |  Function   | Label |
          |------------------------------+-------+-------------+-------|
          | RG-58A/U 50ohm coaxial port  |  CN1  | 15-pin flat |  CN3  |
          |                              |       | connector   |       |
          |------------------------------+-------+-------------+-------|
          | Unshielded twisted pair port |  CN2  |             |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   | Status  |                Condition                |
          |--------+---------+-----------------------------------------|
          |  LED1  |   On    |   Data is being transmitted/received    |
          |--------+---------+-----------------------------------------|
          |  LED1  |   Off   | Data is not being transmitted/received  |
          |--------+---------+-----------------------------------------|
          |  LED2  |   On    |   10Bas-T network connection is good    |
          |--------+---------+-----------------------------------------|
          |  LED2  |   Off   |  10Base-T network connection is broken  |
          +------------------------------------------------------------+
