# ACCTON TECHNOLOGY CORPORATION
ETHERCOMBO-PCI (EN1208)
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus, Star
Wiring Type Shielded twisted pair
Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Available (location unidentified)

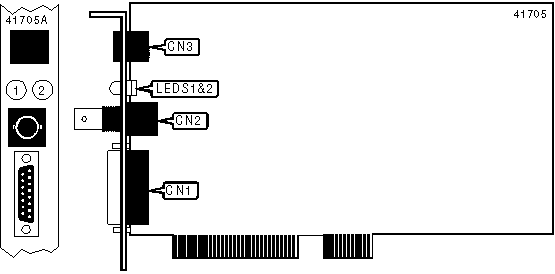

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------+-------+--------------------------+-------|
| AUI transceiver | CN1 | Shielded/Unshielded | CN3 |
| via DB-15 port | | twisted pair port | |
|-----------------+-------+--------------------------+-------|
| RG-58A/U 50ohm | CN2 | | |
| coaxial port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Green | On | 10Base-T network connection is |
| | | | good |
|------+-------+--------+------------------------------------|
| LED1 | Green | Off | 10Base-T network connection is |
| | | | broken |
|------+-------+--------+------------------------------------|
| LED2 | Green | On | Data is being transmitted/received |
|------+-------+--------+------------------------------------|
| LED2 | Green | Off | Data is not being |
| | | | transmitted/received |
+------------------------------------------------------------+
