# ASANTE TECHNOLOGIES, INC.
MACCON+ IIET64 10BASE-2
Card Type Ethernet
Chip Set Unidentified
Data Bus NuBus
Maximum Network Rate 10Mbps
Topology Linear Bus
Wiring Type AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Not available

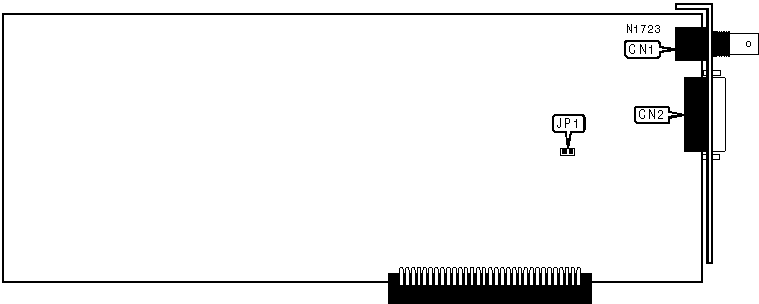

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------+-------+---------------------------+-------|
| RG-58A/U 50ohm | CN1 | AUI transceiver via DB-15 | CN2 |
| coaxial | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Setting | JP1 |
|--------------------------------+---------------------------|
| Auto-detect | Open |
|--------------------------------+---------------------------|
| AUI transceiver via DB-15 port | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Traffic detected on network |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Traffic not detected on network |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------------------------------------------------------------|
| Note: Exact location of LEDs is unidentified. |
+------------------------------------------------------------+
