# ASANTE TECHNOLOGIES, INC.
MACCON-I NB-3
Card Type Ethernet
Chip Set Unidentified
Data Bus NuBus
Maximum Network Rate 10Mbps
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Not available

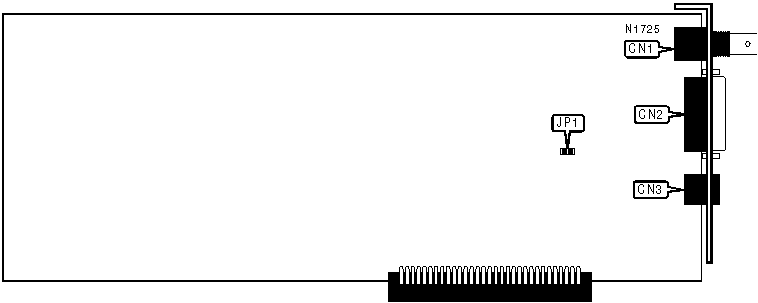

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| RG-58A/U 50ohm | CN1 | Unshielded twisted | CN3 |
| coaxial | | pair | |
|-----------------------+-------+--------------------+-------|
| AUI transceiver via | CN2 | | |
| DB-15 port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| ยป | Link integrity function enabled | JP1 | Open |
|---+-------------------------------------+-------+----------|
| | Link integrity function disabled | JP1 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Traffic detected on network |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Traffic not detected on network |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------------------------------------------------------------|
| Note: Exact location of LEDs is unidentified. |
+------------------------------------------------------------+
