# ASANTE TECHNOLOGIES, INC.
MACCON3 610
Card Type Ethernet
Chip Set Unidentified
Data Bus NuBus
Maximum Network Rate 10Mbps
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

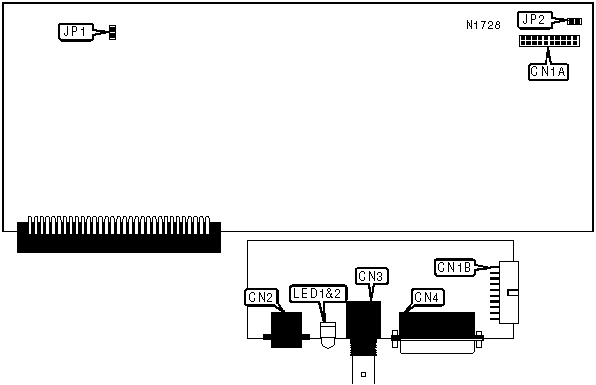

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Daughterboard header | CN1A | RG-58A/U 50ohm | CN3 |
| | & B | coaxial | |
|-----------------------+-------+--------------------+-------|
| Unshielded twisted | CN2 | AUI transceiver | CN4 |
| pair | | via DB-15 port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| ยป | Link integrity function enabled | JP2 | Open |
|---+-------------------------------------+-------+----------|
| | Link integrity function disabled | JP2 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Setting | JP1 |
|--------------------------------+---------------------------|
| Auto-detect | Open |
|--------------------------------+---------------------------|
| AUI transceiver via DB-15 port | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+---------+----------+-------------------------------|
| LED1 | Yellow | Blinking | Traffic detected on network |
|-------+---------+----------+-------------------------------|
| LED1 | Yellow | Off | Traffic not detected on |
| | | | network |
|-------+---------+----------+-------------------------------|
| LED2 | Green | On | Network connection is good |
|-------+---------+----------+-------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------------------------------------------------------------|
| Note: Exact location of individual LEDs is |
| unidentified. |
+------------------------------------------------------------+
