# ASANTE TECHNOLOGIES, INC.
MACCON+ LCIII, MACCON-I LC-TN/10T
Card Type Ethernet
Chip Set Unidentified
Data Bus LC PDS
NPU Options 68882 (exact location unidentified)
Maximum Network Rate 10Mbps
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available

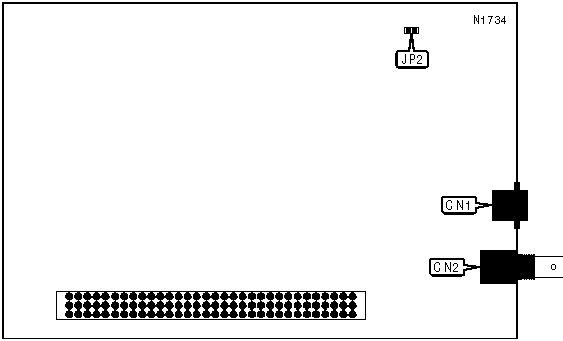

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Unshielded twisted | CN1 | RG-58A/U 50ohm | CN2 |
| pair | | coaxial | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| ยป | Link integrity function enabled | JP2 | Open |
|---+-------------------------------------+-------+----------|
| | Link integrity function disabled | JP2 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Traffic detected on network |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Traffic not detected on network |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------------------------------------------------------------|
| Note: Exact location of LEDs is unidentified. |
+------------------------------------------------------------+
