# ASANTE TECHNOLOGIES, INC.
MACCON LC10TIII, MACCON-I LC-10T
Card Type Ethernet
Chip Set Unidentified
Data Bus LC PDS
NPU Options 68882 (exact location unidentified)
Maximum Network Rate 10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available

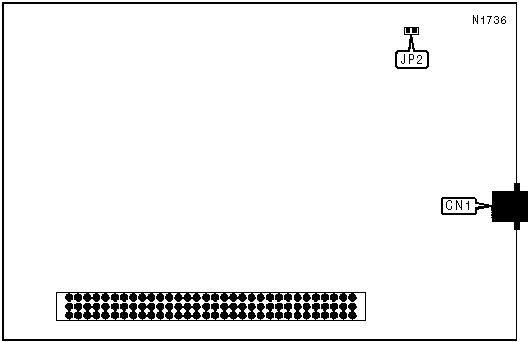

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| ยป | Link integrity function enabled | JP2 | Open |
|---+-------------------------------------+-------+----------|
| | Link integrity function disabled | JP2 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Traffic detected on network |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Traffic not detected on network |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------------------------------------------------------------|
| Note: Exact location of LEDs is unidentified. |
+------------------------------------------------------------+
