# ASANTE TECHNOLOGIES, INC.
MACCON+ SEET
Card Type Ethernet
Chip Set Unidentified
Data Bus PDS
Maximum Network Rate 10Mbps
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port (optional)
Boot ROM Not available

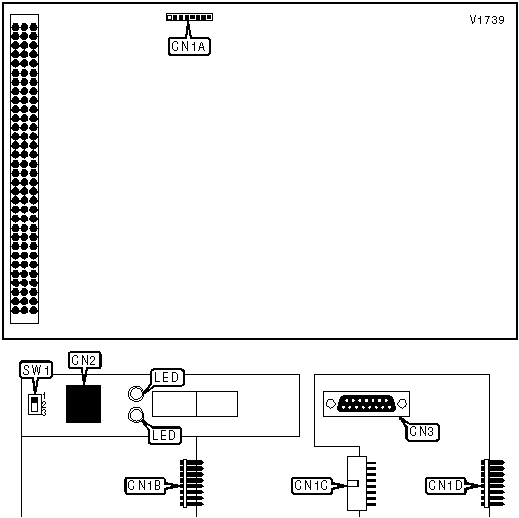

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Daughterboard header | CN1A | Header to | CN1D |
| | | mainboard | |
|-----------------------+-------+--------------------+-------|
| Header to main board | CN1B | Unshielded twisted | CN2 |
| or to AUI | | pair | |
| daughterboard | | | |
|-----------------------+-------+--------------------+-------|
| Header to | CN1C | AUI transceiver | CN3 |
| daughterboard | | via DB-15 port | |
|------------------------------------------------------------|
| Note: The connector daughterboard connects to the |
| main board via a cable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Setting | SW1 |
|-----------------------------------------------+------------|
| Unshielded twisted pair, link integrity | Position 1 |
| enabled | |
|-----------------------------------------------+------------|
| Unshielded twisted pair, link integrity | Position 2 |
| disabled | |
|-----------------------------------------------+------------|
| AUI transceiver via DB-15 port | Position 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+---------+----------+-------------------------------|
| LED1 | Yellow | Blinking | Traffic detected on network |
|-------+---------+----------+-------------------------------|
| LED1 | Yellow | Off | Traffic not detected on |
| | | | network |
|-------+---------+----------+-------------------------------|
| LED2 | Green | On | Network connection is good |
|-------+---------+----------+-------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------------------------------------------------------------|
| Note: Exact location of individual LEDs is |
| unidentified. |
+------------------------------------------------------------+
