# ANCOR COMMUNICATIONS, INC.
FCS 266 EISA
NIC Type Fiber Channel
Processor Intel i960
Processor Speed 33MHz
Chipset Ancor Communications VHSCI 3
Maximum Onboard Memory 1.5MB SRAM/128KB Flash ROM
Network Transfer Rate 265.6125Mbps
Data Bus EISA
Topology Star/Peer-Peer
Wire Type Fiber optic cable
Boot ROM Not available

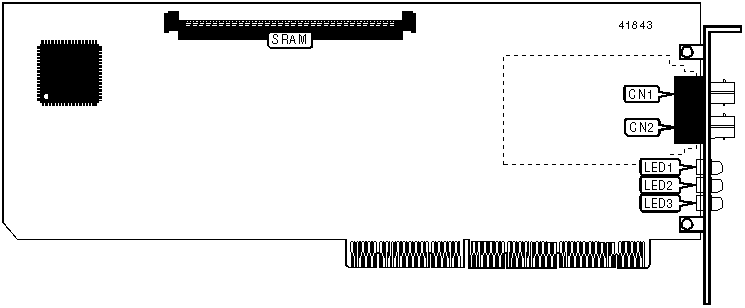

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Transmit fiber optic | CN1 | Receive fiber optic | CN2 |
| SC connector | | SC connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SRAM CONFIGURATION |
|------------------------------------------------------------|
| The first 512KB of SRAM, used for processor memory, is |
| located on the board. Its exact location is unidentified. |
| The SRAM SIMM, used as a data buffer, may be 256KB or 1MB. |
| The type and configuration of this SIMM is also |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Blinking | Normal operation |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 1 blinks | EPROM failed checksum |
| | | | test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 2 blinks | Processor memory failed |
| | | | self-test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 3 blinks | Buffer memory failed |
| | | | self-test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 4 blinks | FPGA failed self-test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 5 blinks | Flash ROM failed checksum |
| | | | test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 6 blinks | Flash ROM ID failed |
| | | | self-test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 7 blinks | OLC loopback test failed |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 8 blinks | Chipset register failed |
| | | | self-test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | 9 blinks | Timer failed self-test |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | Power is off or processor |
| | | | is not functioning |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | On | Card is transmitting data |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | Card is not transmitting |
| | | | data |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | On | Card is receiving data |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Off | Card is not receiving |
| | | | data |
+------------------------------------------------------------+
