# ALLIED TELESYN, INC.
AT-1720T
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Star
Wiring Type Shielded twisted pair
Unshielded twisted pair
Data Bus MCA

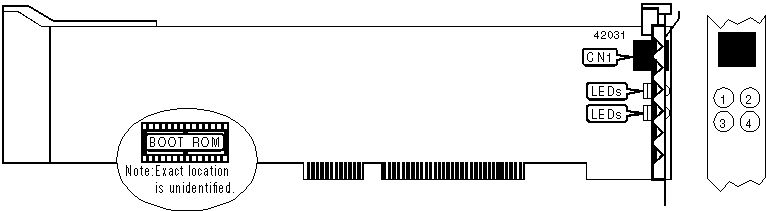

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| TX | Green | On | Data is being transmitted |
|------+--------+--------+-----------------------------------|
| TX | Green | Off | Data is not being transmitted |
|------+--------+--------+-----------------------------------|
| RX | Yellow | On | Data is being received |
|------+--------+--------+-----------------------------------|
| RX | Yellow | Off | Data is not being received |
|------+--------+--------+-----------------------------------|
| LNK | Green | On | Link integrity is good |
|------+--------+--------+-----------------------------------|
| LNK | Green | Off | Link integrity is broken |
|------+--------+--------+-----------------------------------|
| COL | Yellow | On | Collision detected on network |
|------+--------+--------+-----------------------------------|
| COL | Yellow | Off | No collision detected on network |
+------------------------------------------------------------+
