# ALLIED TELESYN, INC.
AT-1720BT
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Shielded twisted pair
Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus MCA

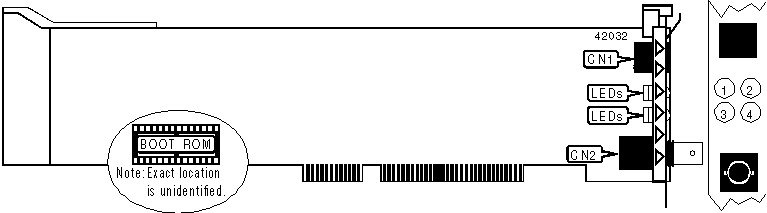

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| RJ-45, Twisted pair | CN1 | RG-58A/U 50 ohm | CN2 |
| | | coaxial | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| TX | Green | On | Data is being transmitted |
|------+--------+--------+-----------------------------------|
| TX | Green | Off | Data is not being transmitted |
|------+--------+--------+-----------------------------------|
| RX | Yellow | On | Data is being received |
|------+--------+--------+-----------------------------------|
| RX | Yellow | Off | Data is not being received |
|------+--------+--------+-----------------------------------|
| LNK | Green | On | Link integrity is good |
|------+--------+--------+-----------------------------------|
| LNK | Green | Off | Link integrity is broken |
|------+--------+--------+-----------------------------------|
| COL | Yellow | On | Collision detected on network |
|------+--------+--------+-----------------------------------|
| COL | Yellow | Off | No collision detected on network |
+------------------------------------------------------------+
