# ALLIED TELESYN, INC.
AT-2560FX SC
Card Type Network Interface Card
NIC Type Ethernet
Network Transfer Rate 100Mbps
Topology Star
Wiring Type Fiber optic cable
Data Bus 32-bit PCI

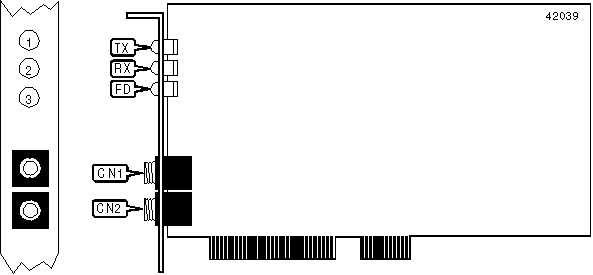

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| SC, Fiber optic - | CN1 | SC, Fiber optic - | CN2 |
| transmit | | receive | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+--------+------------------------------|
| RX | Unidentified | On | Data is being received |
|-----+--------------+--------+------------------------------|
| RX | Unidentified | Off | Data is not being received |
|-----+--------------+--------+------------------------------|
| TX | Unidentified | On | Data is being transmitted |
|-----+--------------+--------+------------------------------|
| TX | Unidentified | Off | Data is not being |
| | | | transmitted |
|-----+--------------+--------+------------------------------|
| FD | Unidentified | On | Connection is full-duplex |
|-----+--------------+--------+------------------------------|
| FD | Unidentified | Off | Connection is not |
| | | | full-duplex |
+------------------------------------------------------------+
