# ACCTON TECHNOLOGY CORPORATION
ETHERDUO-16 (EN1657-P)
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory 16KB
Boot ROM Unidentified
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus 16-bit ISA
IMG IMG 1
+------------------------------------------------------------+

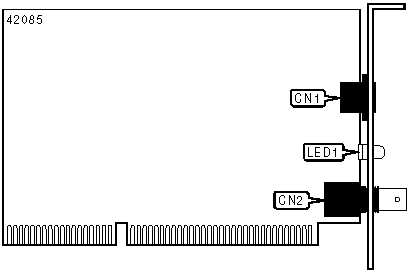

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| UTP via RJ-45 | CN1 | RG-58A/U connector | CN2 |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | UTP link is good |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | UTP link is broken |
+------------------------------------------------------------+
