# ASANTE TECHNOLOGIES, INC.
ASANTEFAST 10/100 PCI (VER. 2)
Card Type Ethernet
Data Bus 32-bit PCI
Maximum Network Rate 10/100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available

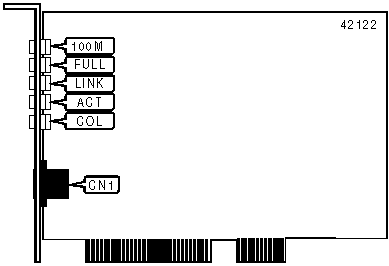

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| 100M | Green | On | Card is configured for 100Mbps |
| | | | operation |
|------+-------+----------+----------------------------------|
| 100M | Green | Off | Card is configured for 10Mbps |
| | | | operation |
|------+-------+----------+----------------------------------|
| FULL | Green | On | Card is configured for full |
| | | | duplex operation |
|------+-------+----------+----------------------------------|
| FULL | Green | Off | Card is configured for half |
| | | | duplex operation |
|------+-------+----------+----------------------------------|
| LINK | Green | On | Network connection is good |
|------+-------+----------+----------------------------------|
| LINK | Green | Off | Network connection is broken |
|------+-------+----------+----------------------------------|
| ACT | Green | Blinking | Card is transmitting |
|------+-------+----------+----------------------------------|
| ACT | Green | Off | Card is not transmitting |
|------+-------+----------+----------------------------------|
| COL | Amber | On | Collision detected on network |
|------+-------+----------+----------------------------------|
| COL | Amber | Off | No collision detected on network |
+------------------------------------------------------------+
