# ACCTON TECHNOLOGY CORPORATION
CHEETAH PCI ADAPTER
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 10/100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

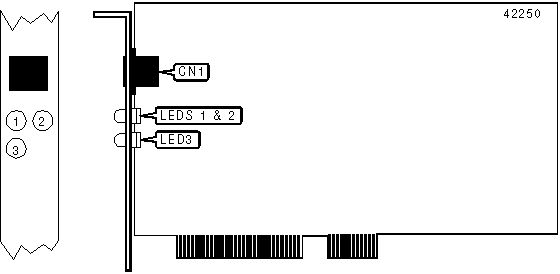

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| UTP via RJ-45 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | On | Network connected at 100Mbps |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | Network not connected at 100Mbps |
|------+-------+----------+----------------------------------|
| LED2 | Green | On | Network connection is good |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------+-------+----------+----------------------------------|
| LED3 | Green | Blinking | Data is being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED3 | Green | Off | Data is not being |
| | | | transmitted/received |
+------------------------------------------------------------+
