# BAY NETWORKS, INC.
505
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus External

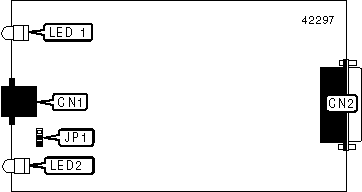

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| RJ-45 UTP connector | CN1 | AUI transceiver via | CN2 |
| | | DB-15 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+-------+-------------------|
| ยป | SQE test function enabled | JP1 | Pins 1 & 2 closed |
|---+----------------------------+-------+-------------------|
| | SQE test function disabled | JP1 | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+---------+----------+------------------------------|
| LED1 | Green | On | Network connection is good |
|--------+---------+----------+------------------------------|
| LED1 | Green | Off | Network connection is broken |
|--------+---------+----------+------------------------------|
| LED2 | Green | On | SQE test function enabled |
|--------+---------+----------+------------------------------|
| LED2 | Green | Off | SQE test function disabled |
+------------------------------------------------------------+
