# BAY NETWORKS, INC.
515
Device Type Ethernet Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 100Mbps (200Mbps full duplex)
Topology Star
Wiring Type Unshielded twisted pair
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

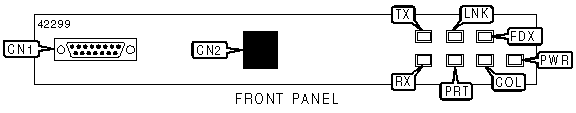

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AUI transceiver via | CN1 | RJ-45 UTP connector | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+--------+-------------------------------------|
| TX | Green | On | Data is being transmitted |
|-----+-------+--------+-------------------------------------|
| TX | Green | Off | Data is not being transmitted |
|-----+-------+--------+-------------------------------------|
| RX | Green | On | Data is being received |
|-----+-------+--------+-------------------------------------|
| RX | Green | Off | Data is not being received |
|-----+-------+--------+-------------------------------------|
| LNK | Green | On | Network connection is good |
|-----+-------+--------+-------------------------------------|
| LNK | Green | Off | Network connection is broken |
|-----+-------+--------+-------------------------------------|
| PRT | Amber | On | Transceiver has been disabled by |
| | | | network management |
|-----+-------+--------+-------------------------------------|
| PRT | Amber | Off | Transceiver has not been disabled |
| | | | by network management |
|-----+-------+--------+-------------------------------------|
| FDX | Green | On | Transceiver is in full duplex mode |
|-----+-------+--------+-------------------------------------|
| FDX | Green | Off | Transceiver is in CSMA/CD shared |
| | | | media mode |
|-----+-------+--------+-------------------------------------|
| COL | Amber | On | Collision detected on network |
|-----+-------+--------+-------------------------------------|
| COL | Amber | Off | No collision detected on network |
|-----+-------+--------+-------------------------------------|
| PWR | Green | On | Power is on |
|-----+-------+--------+-------------------------------------|
| PWR | Green | Off | Power is off |
+------------------------------------------------------------+
