# ALLIED TELESYN, INC.
AT-MX300TX
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10/100Mbps
Topology Star
Wiring Type Unshielded Twisted Pair
Data Bus External

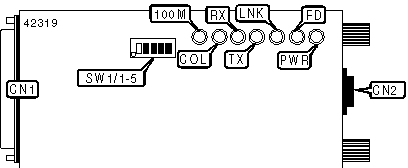

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| 40-pin MII interface | CN1 | UTP connector | CN2 |
| | | (RJ-45) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Note: | A total of 32 base address settings are available. |
| | The switches are a binary representation of the |
| | decimal memory addresses. SW1/1 is the Most |
| | Significant Bit and switch SW1/5 is the Least |
| | Significant Bit. The switches decimal values are |
| | unidentified. (Off=1, On=0) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+--------+-----------------------------|
| PWR | Unidentified | On | Power is on |
|------+--------------+--------+-----------------------------|
| PWR | Unidentified | Off | Power is off |
|------+--------------+--------+-----------------------------|
| FD | Unidentified | On | 100Mbps: Transciever in |
| | | | full duplex mode |
| | | | |
| | | | 10Mbps: UTP receive data |
| | | | signals are correctly |
| | | | connected |
|------+--------------+--------+-----------------------------|
| FD | Unidentified | Off | 100Mbps: Transciever not in |
| | | | full duplex mode |
| | | | |
| | | | 10Mbps: UTP receive data |
| | | | signals are not correctly |
| | | | connected |
|------+--------------+--------+-----------------------------|
| LNK | Unidentified | On | Network connection is good |
|------+--------------+--------+-----------------------------|
| LNK | Unidentified | Off | Network connection is |
| | | | broken |
|------+--------------+--------+-----------------------------|
| TX | Unidentified | On | Data is being transmitted |
|------+--------------+--------+-----------------------------|
| TX | Unidentified | Off | Data is not being |
| | | | transmitted |
|------+--------------+--------+-----------------------------|
| RX | Unidentified | On | Data is being received |
|------+--------------+--------+-----------------------------|
| RX | Unidentified | Off | Data is not being received |
|------+--------------+--------+-----------------------------|
| COL | Unidentified | On | Collision detected on |
| | | | network |
|------+--------------+--------+-----------------------------|
| COL | Unidentified | Off | No collision detected on |
| | | | network |
|------+--------------+--------+-----------------------------|
| 100M | Unidentified | On | Transceiver is in 100Mbps |
| | | | mode |
|------+--------------+--------+-----------------------------|
| 100M | Unidentified | Off | Transceiver is in 10Mbps |
| | | | mode |
+------------------------------------------------------------+
