       # ADDTRON TECHNOLOGY CO., LTD.

          AEF-380TX-D

          Card Type             Ethernet Adapter
          NIC Type              Ethernet
          Boot ROM              Available
          Network Transfer Rate 10Mbps
          Topology              Star
          Wire Type             Unshielded twisted pair

                                RG-58 A/U 50ohm coaxial
          Data Bus              32-bit PCI
          Card Size             Half height, half length

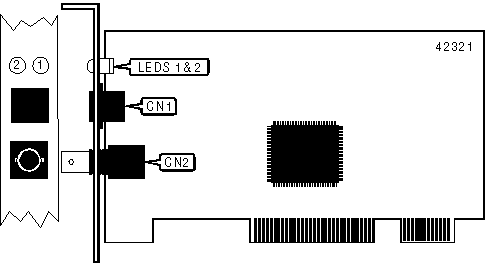

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |         Function         | Label |    Function     | Label |
          |--------------------------+-------+-----------------+-------|
          | UTP interface (RJ-45     |  CN1  | RG-58 A/U 50ohm |  CN2  |
          | connector)               |       | coaxial         |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color  |  Status  |            Condition            |
          |------+--------+----------+---------------------------------|
          | LED1 | Yellow | Blinking |          Data is being          |
          |      |        |          |      transmitted/received       |
          |------+--------+----------+---------------------------------|
          | LED1 | Yellow |   Off    |        Data is not being        |
          |      |        |          |      transmitted/received       |
          |------+--------+----------+---------------------------------|
          | LED2 | Green  |    On    |   Network connection is good    |
          |------+--------+----------+---------------------------------|
          | LED2 | Green  |   Off    |  Network connection is broken   |
          +------------------------------------------------------------+
