# ADDTRON TECHNOLOGY CO., LTD.
AEF-100MT
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10/100Mbps
Topology Star
Wiring Type Unshielded Twisted Pair
Data Bus External

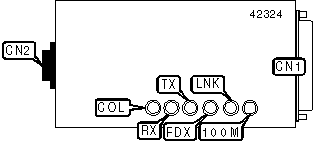

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------+--------+-----------------------+--------|
| 40-pin DTE port | CN1 | UTP connector (RJ-45) | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | On | Transceiver is in 100Mbps |
| | | | mode |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | Off | Transceiver is in 100Mbps |
| | | | mode |
|-----+--------------+--------+------------------------------|
| LNK | Unidentified | On | Network connection is good |
|-----+--------------+--------+------------------------------|
| LNK | Unidentified | Off | Network connection is broken |
|-----+--------------+--------+------------------------------|
| FDX | Unidentified | On | Transceiver in full duplex |
| | | | mode |
|-----+--------------+--------+------------------------------|
| FDX | Unidentified | Off | Transceiver not in full |
| | | | duplex mode |
|-----+--------------+--------+------------------------------|
| TX | Unidentified | On | Data is being transmitted |
|-----+--------------+--------+------------------------------|
| TX | Unidentified | Off | Data is not being |
| | | | transmitted |
|-----+--------------+--------+------------------------------|
| RX | Unidentified | On | Data is being received |
|-----+--------------+--------+------------------------------|
| RX | Unidentified | Off | Data is not being received |
|-----+--------------+--------+------------------------------|
| COL | Unidentified | On | Collision detected on |
| | | | network |
|-----+--------------+--------+------------------------------|
| COL | Unidentified | Off | No collision detected on |
| | | | network |
+------------------------------------------------------------+
