# ALLIED TELESYN, INC.
AT-MX10, AT-MX10S
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10Mbps
Topology Star
Wiring Type RG-58A/U connector
Data Bus External

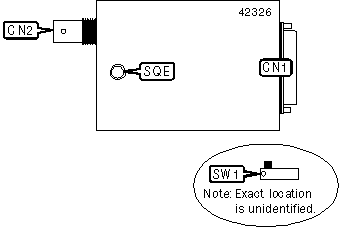

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| AUI transceiver via | CN1 | RG-58A/U connector | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | SQE test function disabled | SW1 | Off |
|---+------------------------------------+-------+-----------|
| | SQE test function enabled | SW1 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+--------+-------------------------------------|
| SQE | Amber | On | Signal Quality Error test function |
| | | | is enabled |
|-----+-------+--------+-------------------------------------|
| SQE | Green | On | Signal Quality Error test function |
| | | | is disabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| AT-MX10S is the slim-line version and contains a connector |
| extension for tight installation |
+------------------------------------------------------------+
