# ALLIED TELESYN, INC.
AT-210T, AT-210TS
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus External

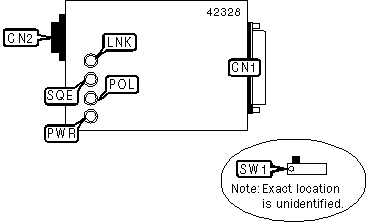

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AUI transceiver via | CN1 | RJ-45 UTP connector | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | SQE test function disabled | SW1 | Off |
|---+------------------------------------+-------+-----------|
| | SQE test function enabled | SW1 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | On | Power is on |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | Off | Power is off |
|-----+--------------+--------+------------------------------|
| POL | Unidentified | On | Automatic polarity reversal |
| | | | has not occurred |
|-----+--------------+--------+------------------------------|
| POL | Unidentified | Off | Automatic polarity reversal |
| | | | has occurred |
|-----+--------------+--------+------------------------------|
| SQE | Unidentified | On | Signal Quality Error test |
| | | | function is enabled |
|-----+--------------+--------+------------------------------|
| SQE | Unidentified | Off | Signal Quality Error test |
| | | | function is disabled |
|-----+--------------+--------+------------------------------|
| LNK | Unidentified | On | Network connection is good |
|-----+--------------+--------+------------------------------|
| LNK | Unidentified | Off | Network connection is broken |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| AT-210TS is the slim-line version and contains a connector |
| extension for tight installation |
+------------------------------------------------------------+
