# ADDTRON TECHNOLOGY CO., LTD.
ET-10T1B
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus External

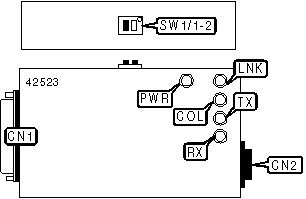

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AUI transceiver via | CN1 | RJ-45 UTP connector | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------------+--------+------------|
| » | SQE test function enabled | SW1/1 | On |
|----+---------------------------------+--------+------------|
| | SQE test function disabled | SW1/1 | Off |
|----+---------------------------------+--------+------------|
| » | Link beat enabled | SW1/2 | On |
|----+---------------------------------+--------+------------|
| | Link beat disabled | SW1/2 | Off |
|------------------------------------------------------------|
| Note: Disable link beat in networks incompatible with |
| 10BaseT standard |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | On | Power is on |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | Off | Power is off |
|-----+--------------+----------+----------------------------|
| RX | Unidentified | Blinking | Data is being received |
|-----+--------------+----------+----------------------------|
| RX | Unidentified | On | Heavy LAN traffic load |
|-----+--------------+----------+----------------------------|
| RX | Unidentified | Off | Data is not being received |
|-----+--------------+----------+----------------------------|
| TX | Unidentified | Blinking | Data is being transmitted |
|-----+--------------+----------+----------------------------|
| TX | Unidentified | On | Large data is being |
| | | | transmitted |
|-----+--------------+----------+----------------------------|
| TX | Unidentified | Off | Data is not being |
| | | | transmitted |
|-----+--------------+----------+----------------------------|
| LNK | Unidentified | On | Network connection is good |
|-----+--------------+----------+----------------------------|
| LNK | Unidentified | Off | Network connection is |
| | | | broken |
|-----+--------------+----------+----------------------------|
| COL | Unidentified | Blinking | Collision detected on |
| | | | network |
|-----+--------------+----------+----------------------------|
| COL | Unidentified | Off | Collision not detected on |
| | | | network |
|-----+--------------+----------+----------------------------|
| COL | Unidentified | On | Possible error occurred |
+------------------------------------------------------------+
